Steel Lattice Girders for Israel
Discuss steel lattice girder supply for your project or procurement requirements in Israel. Send your product drawings, specifications, quantities and delivery destination for quotation review.
View image ↗Product dimensions, material requirements and documentation are reviewed for each enquiry.

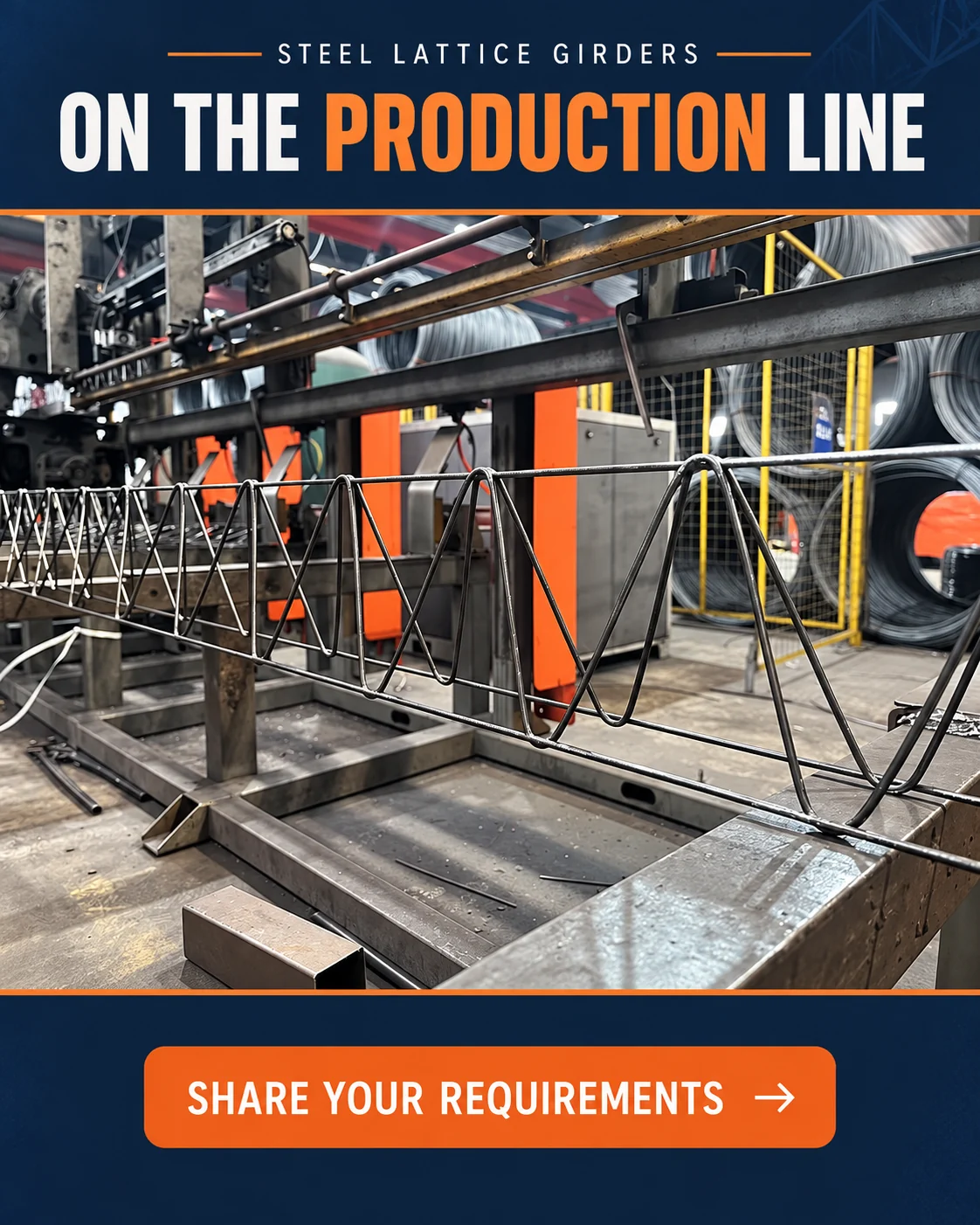

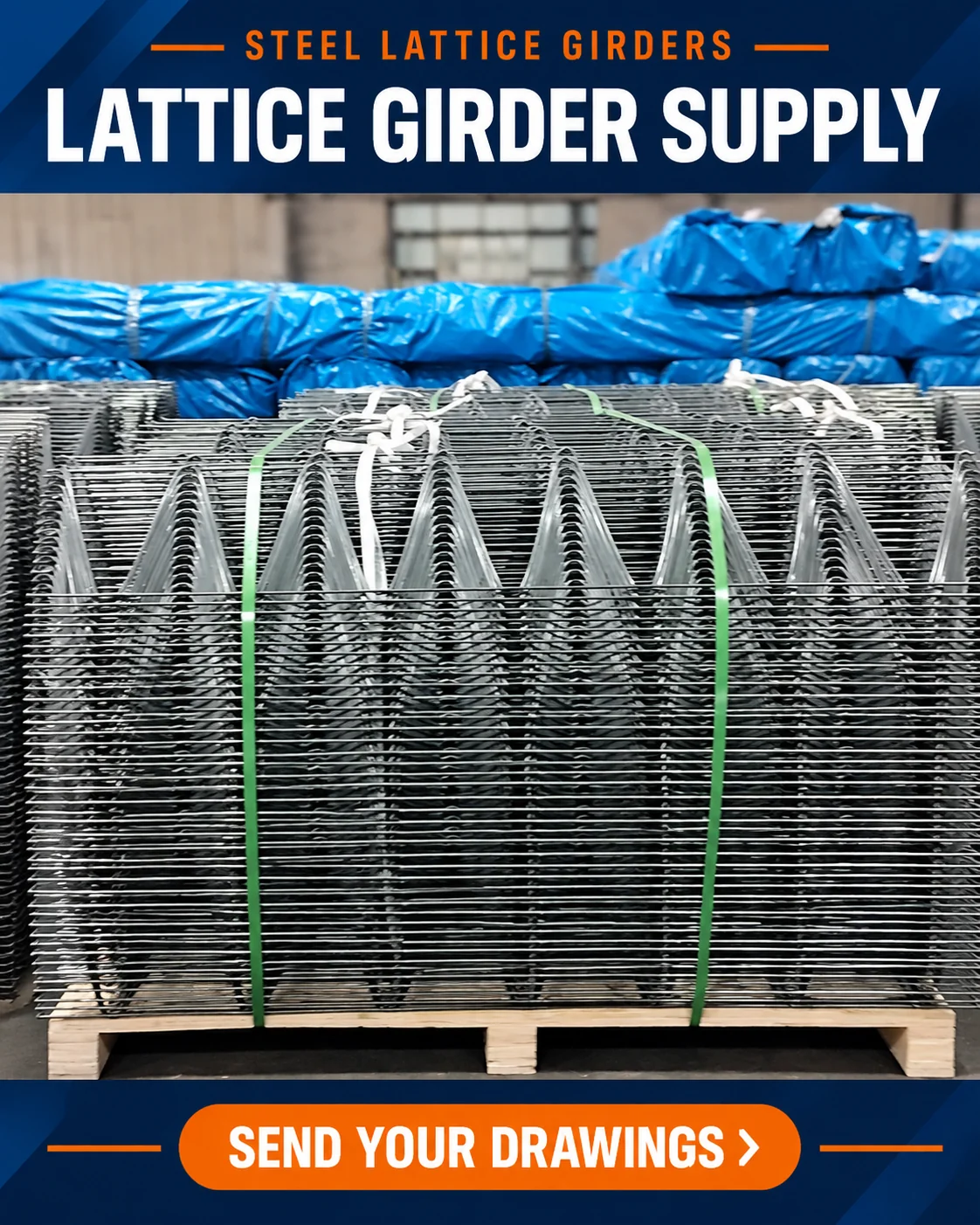

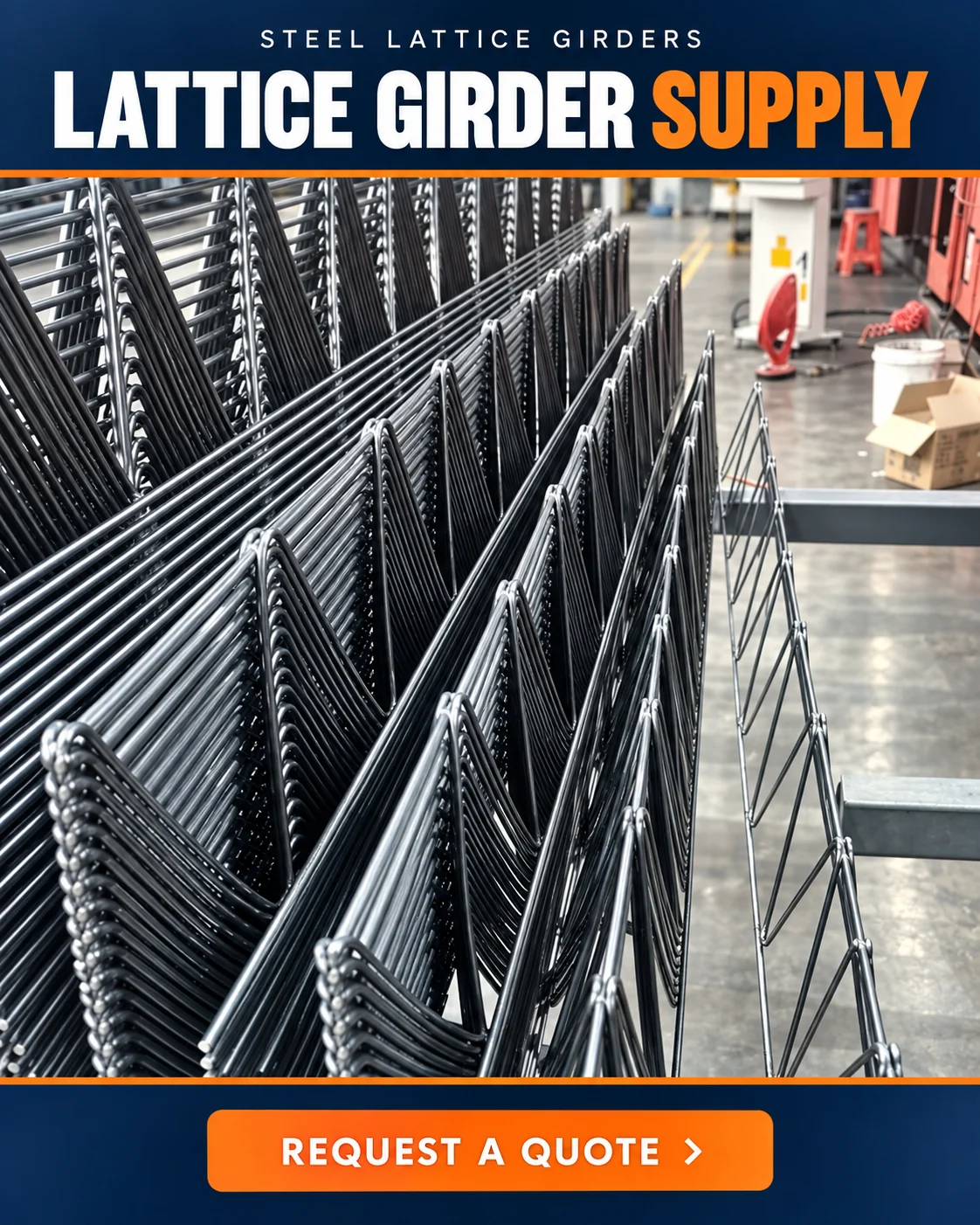

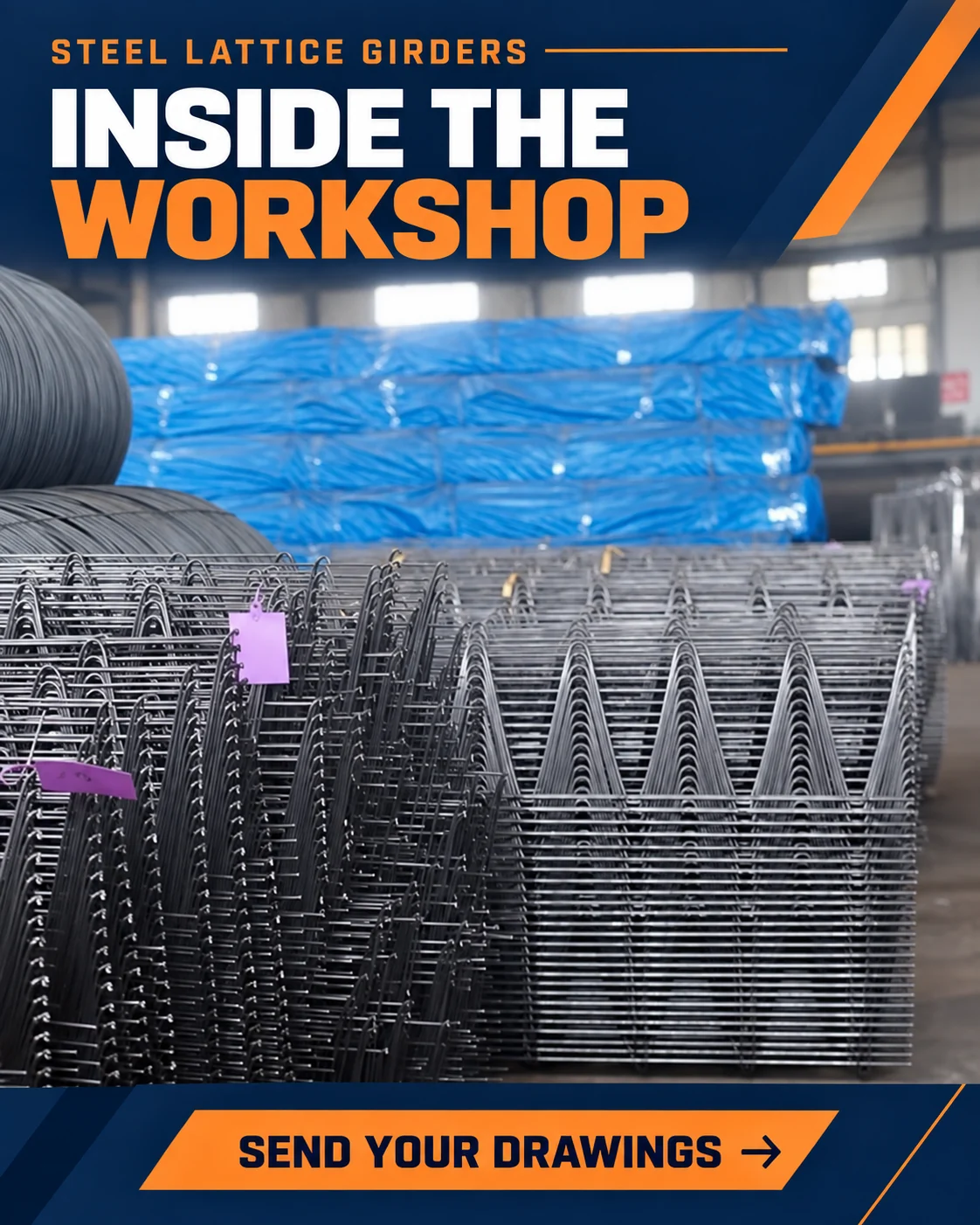

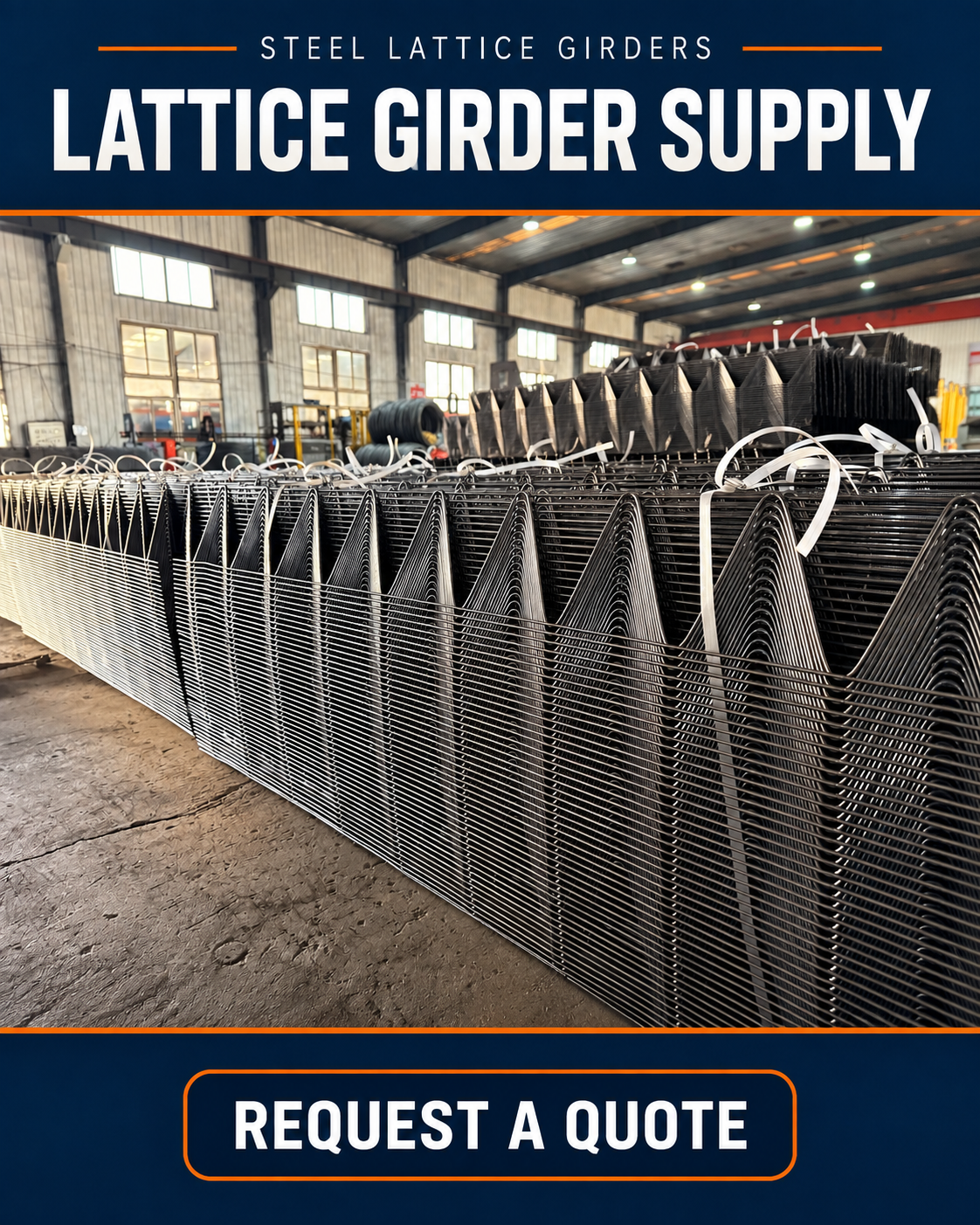

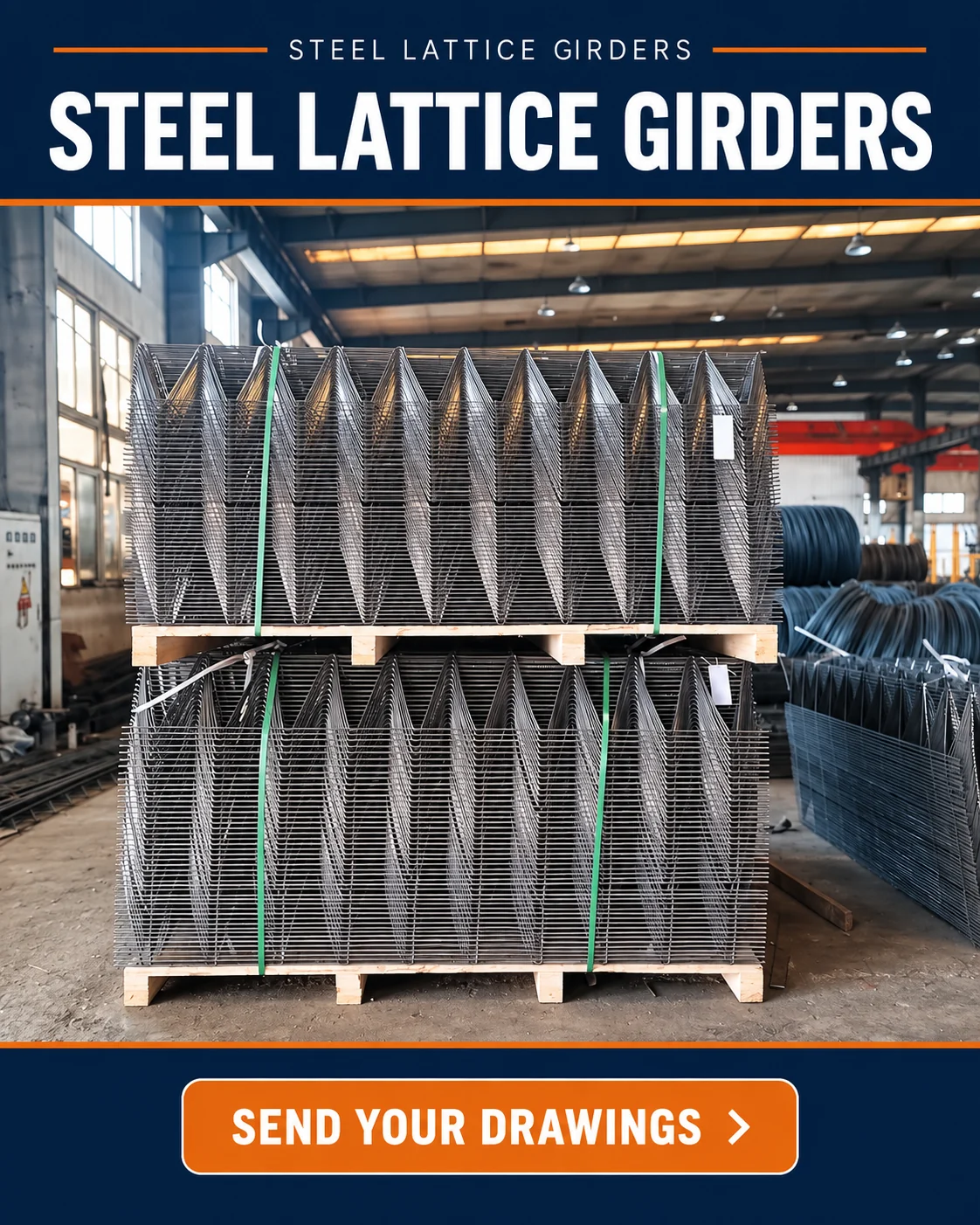

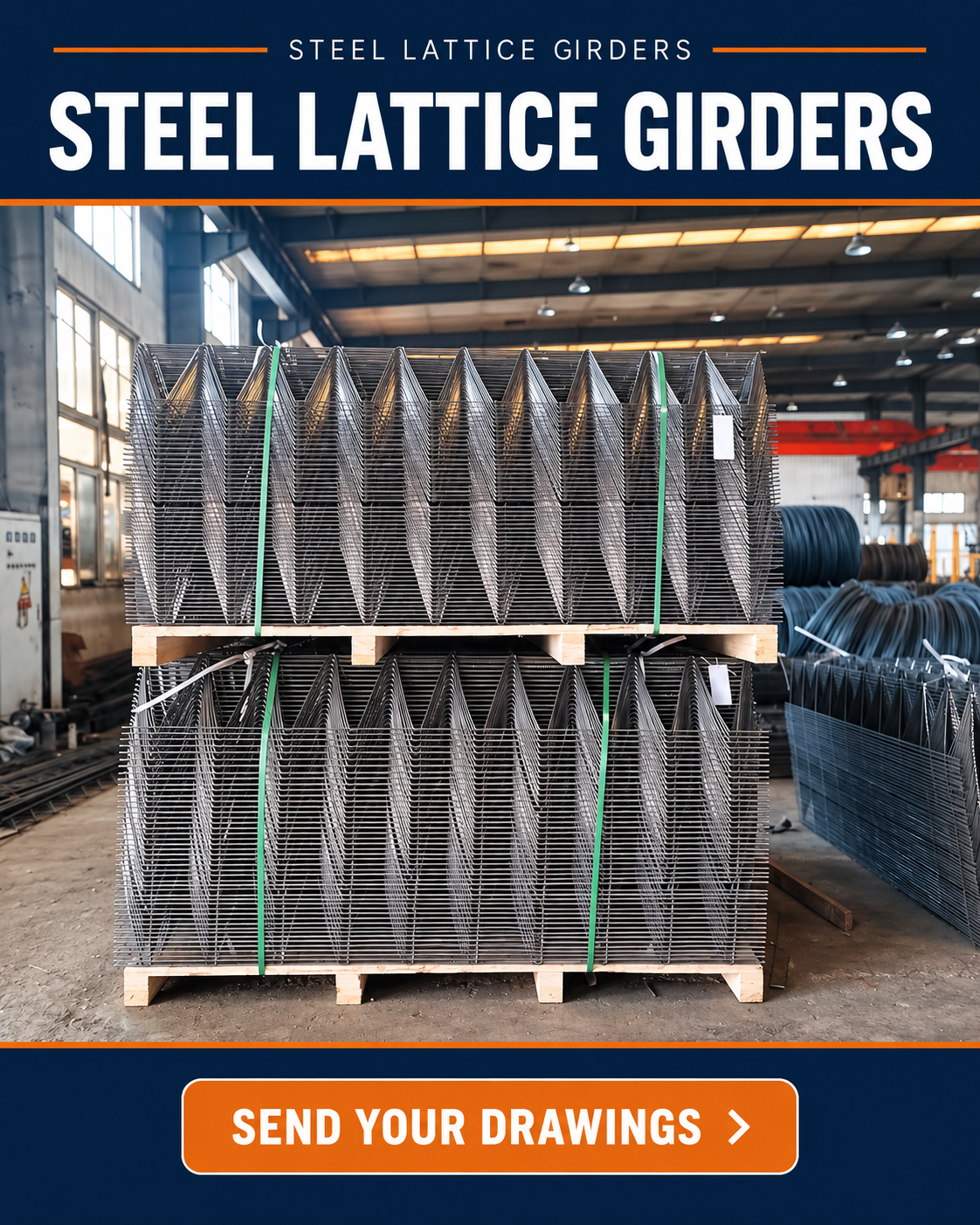

Product, workshop and packing gallery
Explore product details, workshop views, packaging and container loading.
Reference specifications — custom diameters, lengths and heights
The table below is for reference only. Steel lattice girders can be customised by top chord, bottom chord and diagonal wire diameters, overall length and girder height. Send your required dimensions, drawings and quantities for quotation review.
| No. | Size (mm) | Top Chord Ø (mm) | Bottom Chord Ø (mm) | Diagonal Wire Ø (mm) | Girder Height (mm) | Unit Weight (kg/m) | Length (m) | Piece Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1 | 5.8 × 4.8 × 5.8 | 5.8 | 5.8 | 4.8 | 290 | 1.49 | 2 | 2.99 |
| 2 | 6 × 4.3 × 6 | 6 | 6 | 4.3 | 250 | 1.28 | 2 | 2.56 |
| 3 | 5 × 5 × 5 | 5 | 5 | 5 | 150 | 1.02 | 2 | 2.04 |
| 4 | 5 × 5 × 5 | 5 | 5 | 5 | 160 | 1.04 | 2 | 2.09 |
| 5 | 5 × 5 × 5 | 5 | 5 | 5 | 170 | 1.07 | 2 | 2.14 |
| 6 | 5 × 5 × 5 | 5 | 5 | 5 | 180 | 1.10 | 2 | 2.20 |
| 7 | 5 × 5 × 5 | 5 | 5 | 5 | 190 | 1.13 | 2 | 2.25 |
| 8 | 5 × 5 × 5 | 5 | 5 | 5 | 200 | 1.15 | 2 | 2.31 |
| 9 | 5 × 5 × 5 | 5 | 5 | 5 | 220 | 1.21 | 2 | 2.42 |
| 10 | 4.8 × 4.8 × 4.8 | 4.8 | 4.8 | 4.8 | 140 | 0.92 | 2 | 1.83 |
| 11 | 4.8 × 4.8 × 4.8 | 4.8 | 4.8 | 4.8 | 160 | 0.96 | 2 | 1.93 |
All dimensions in mm unless otherwise stated.
What to include in your enquiry
- Product drawing and revision reference
- Overall height, width and length
- Top chord, bottom chord and diagonal wire diameters
- Diagonal spacing and any end-detail requirements
- Specified steel grade, welding and inspection requirements
- Quantity, packing requirements and destination in Israel
- Required technical documentation and project acceptance criteria
Specification review for Israeli buyers
Please provide the standards and acceptance requirements specified by your buyer or project. The proposed product dimensions, material documentation and inspection scope will be reviewed before order confirmation.

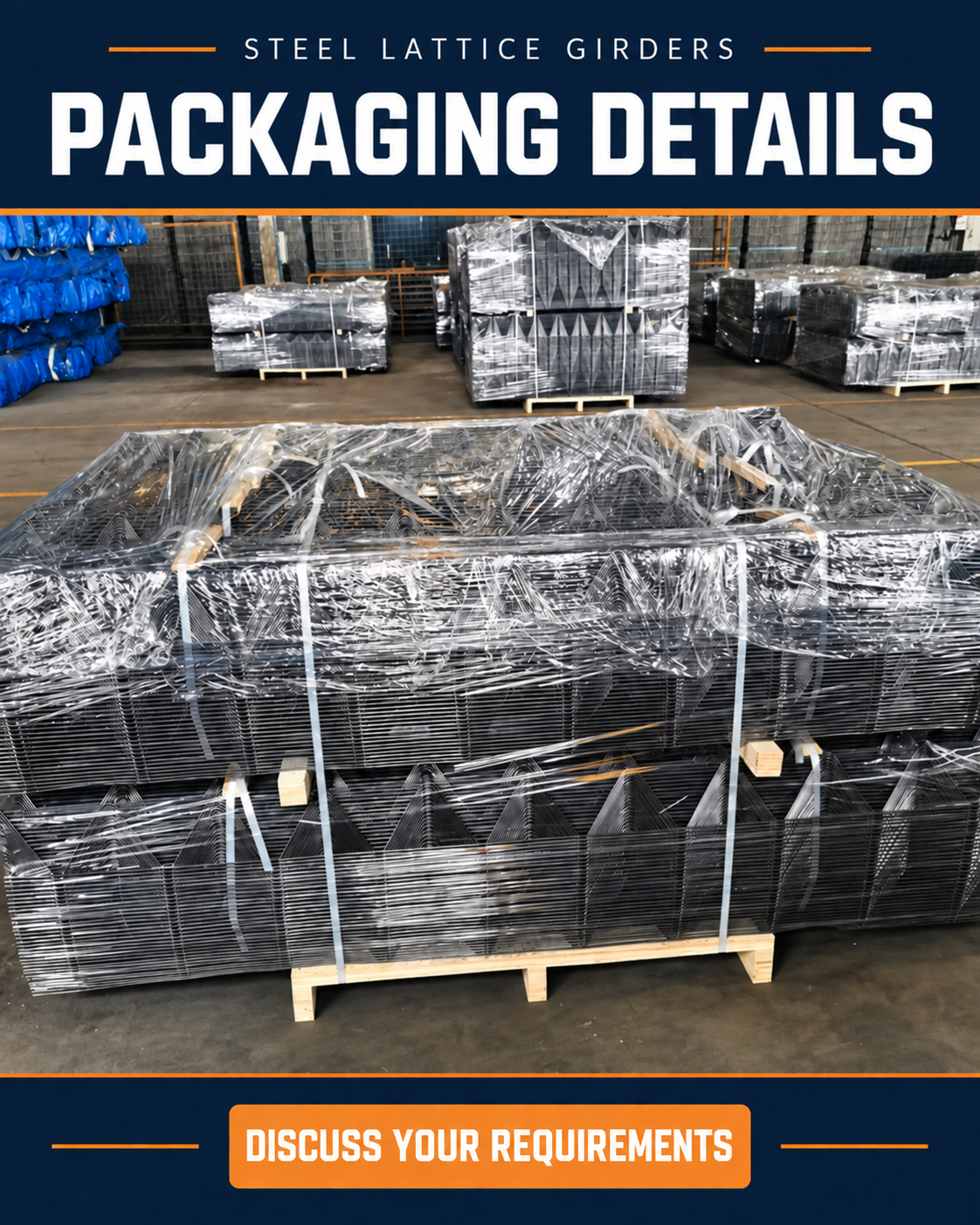

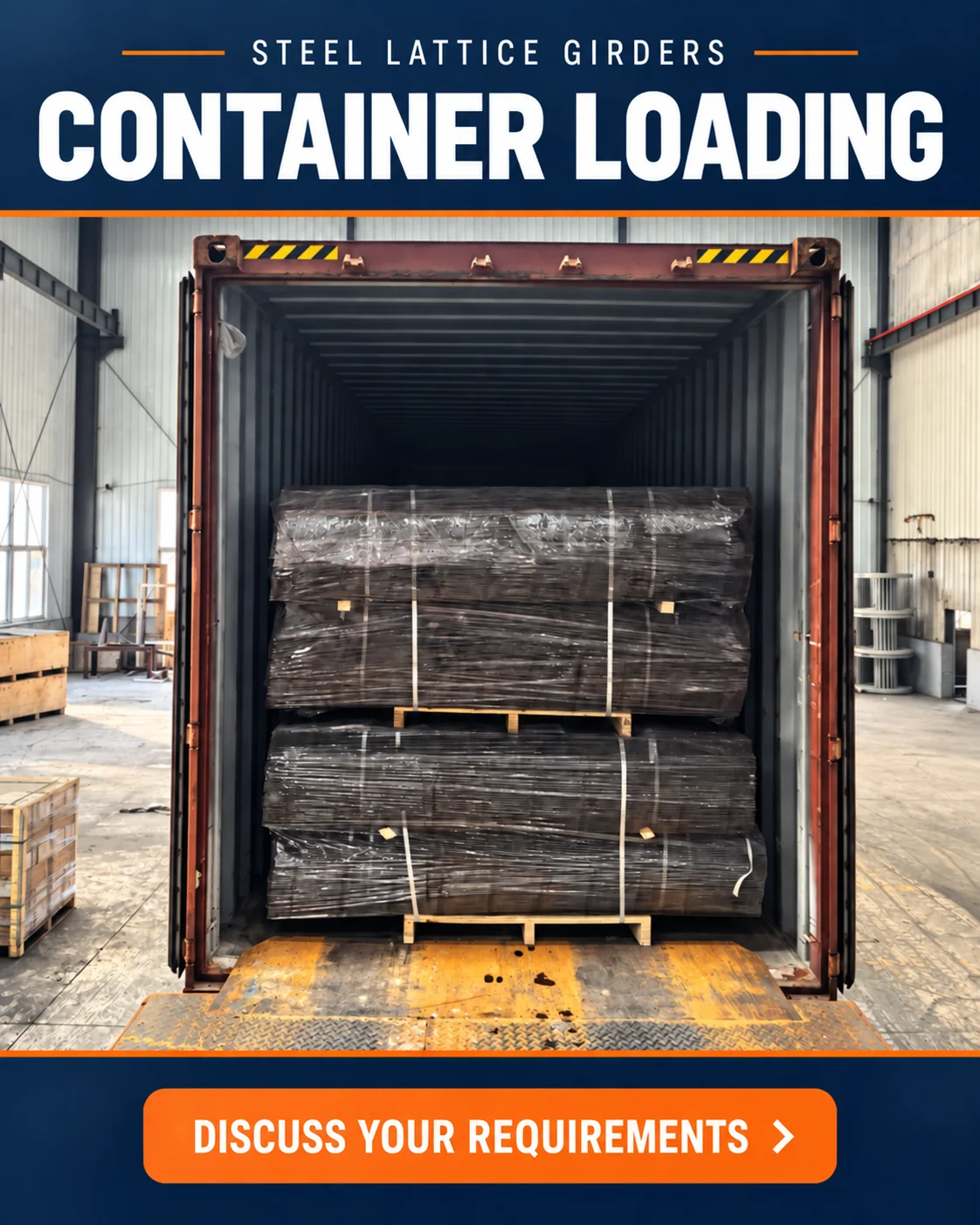

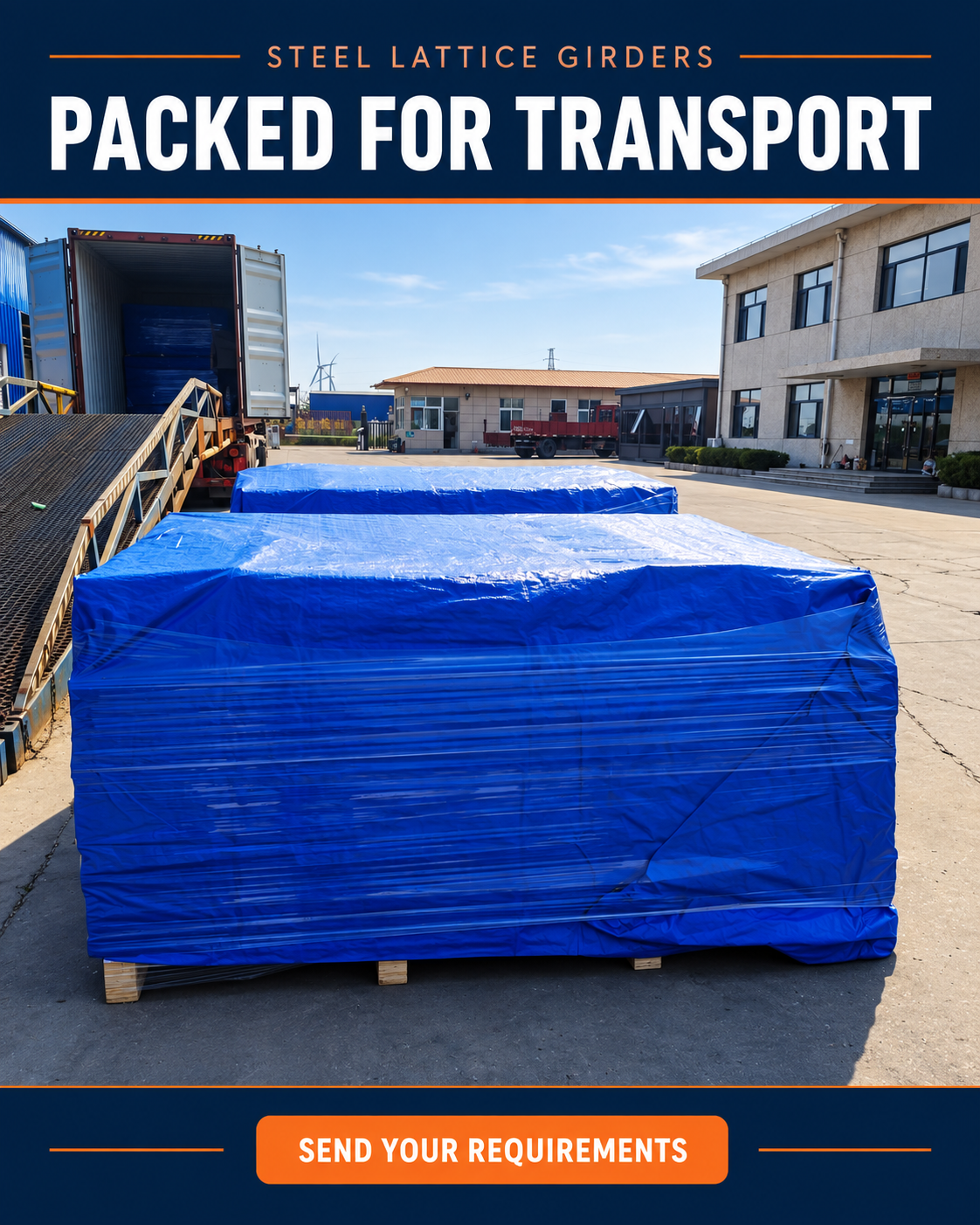

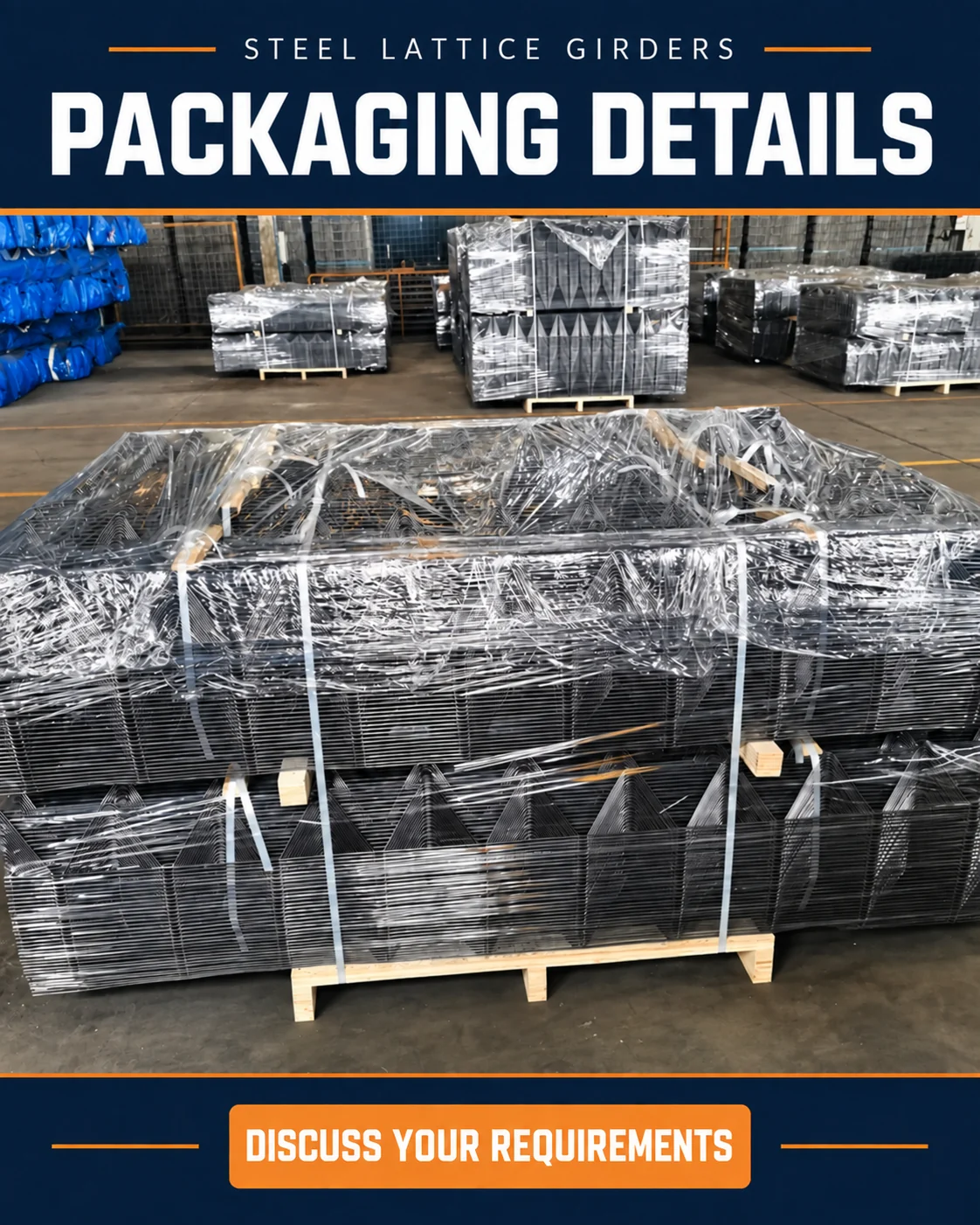

Packing and shipment requirements
Share your preferred pack size, marking requirements, unloading arrangements and delivery destination. Packing and shipment details will be confirmed with the proposed order.
Request a quotation Email your requirementsPreparing your enquiry
Lattice Girder Enquiry Guide: Australia & Israel — check the information needed for a product-specific quotation.
