316 Stainless Steel Stone Cladding Pins & Hooks
Formed pins and hooks for stone-cladding enquiries in Israel. Explore reference sizes, then send your drawing and quantities for a quotation.
View image ↗316 stainless steel · Reference sizes · Drawing approval required
PRODUCT RANGE
Explore the forms

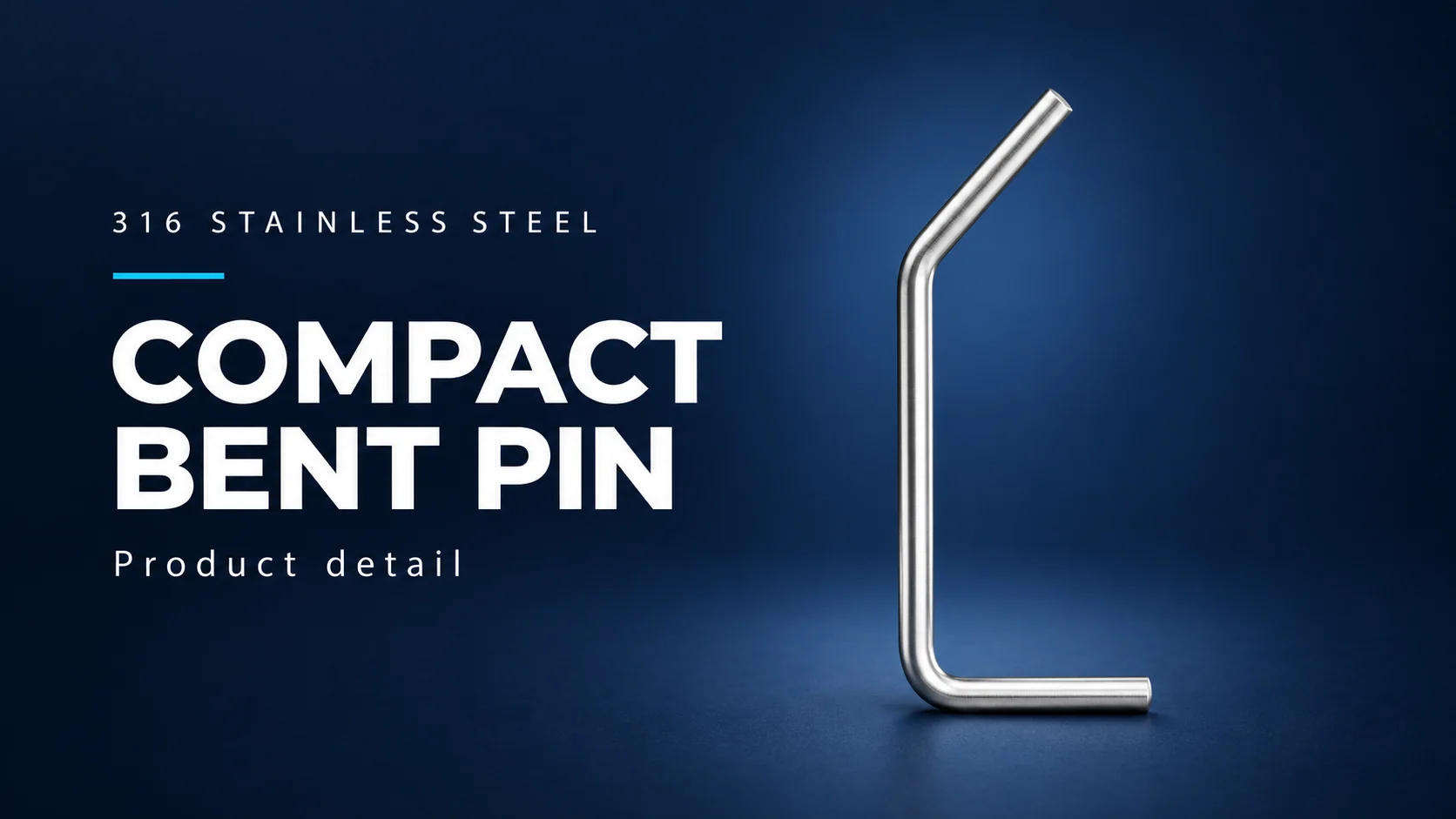

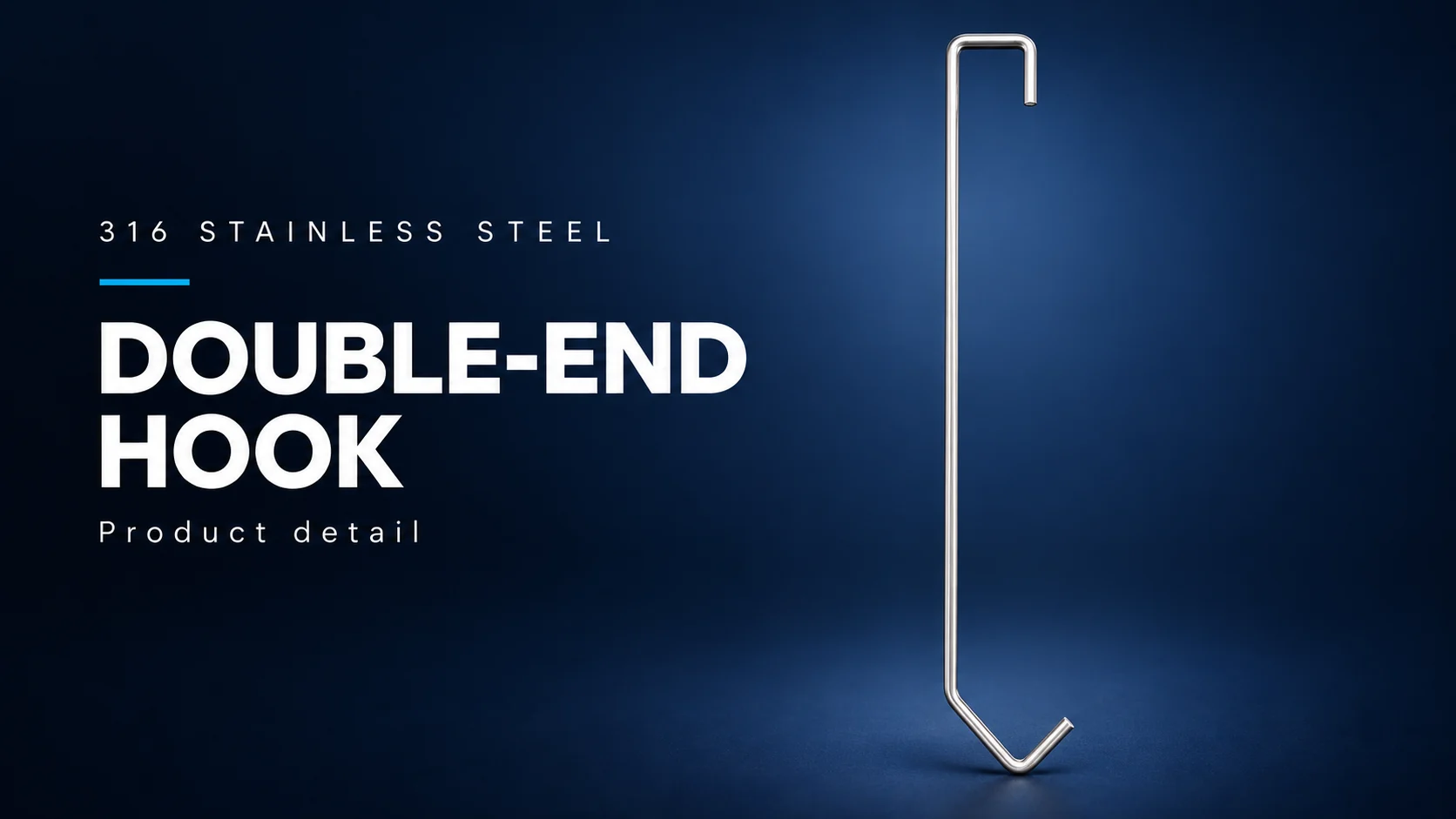

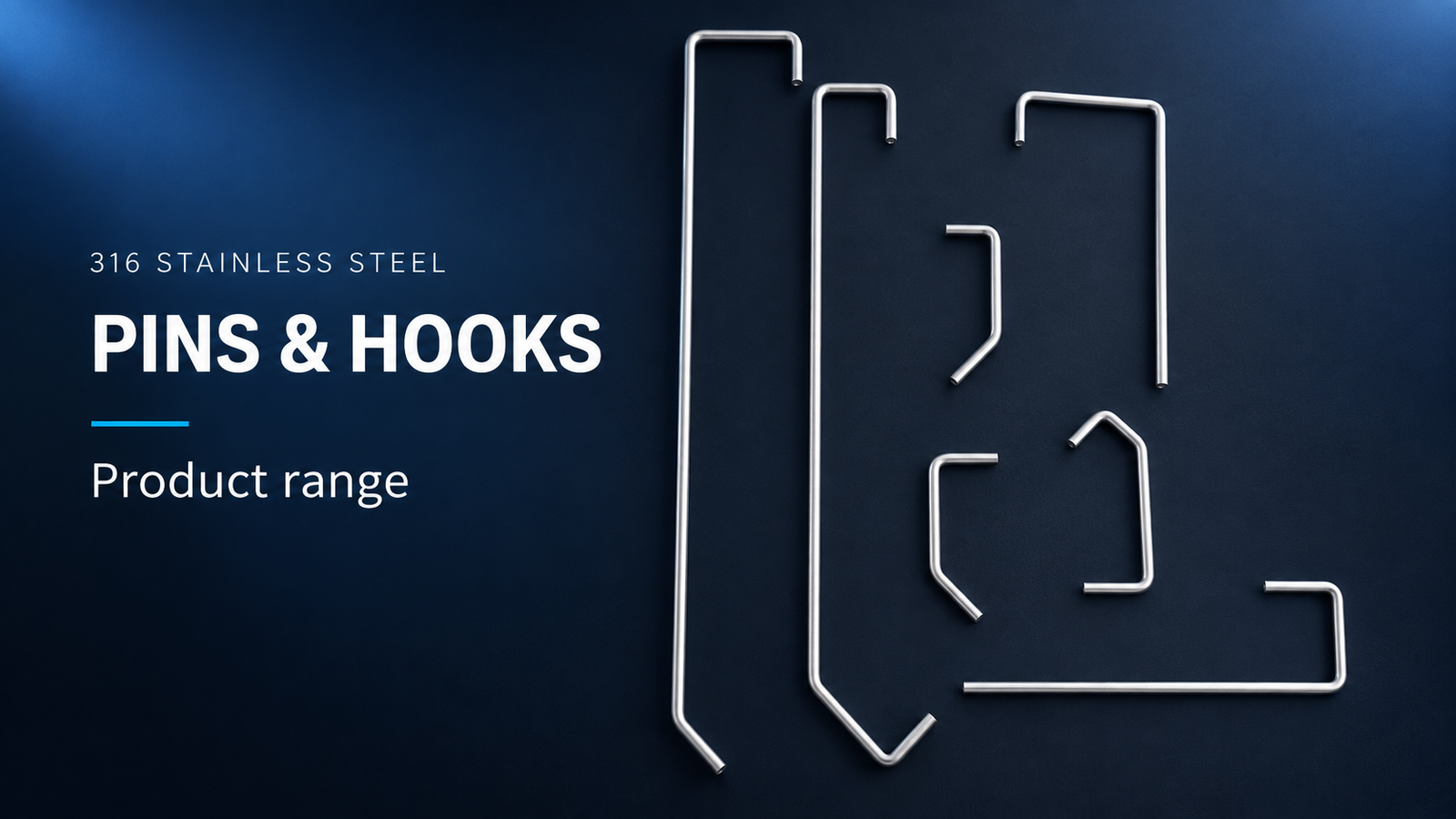

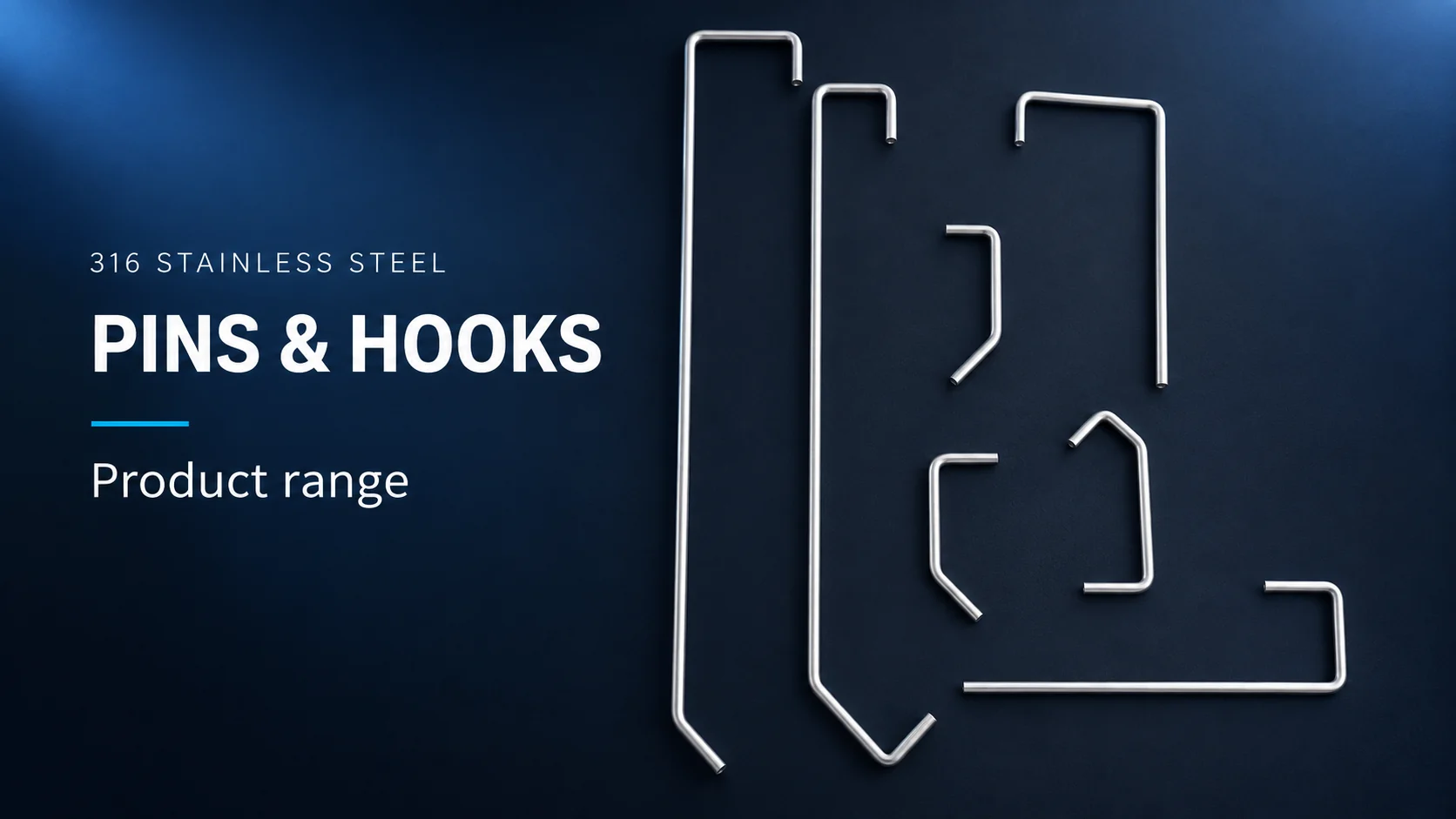

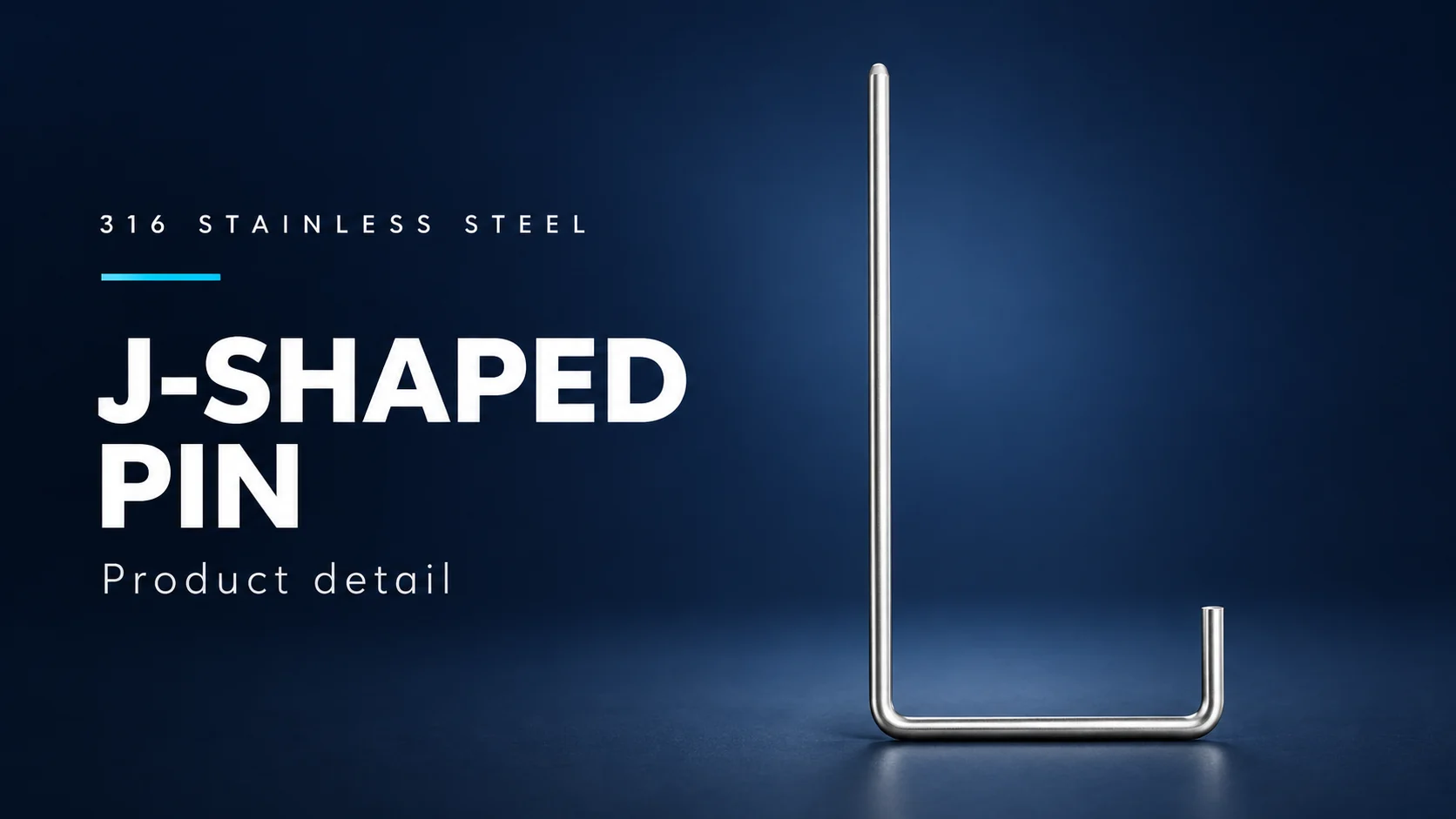

Promotional images illustrate product forms. Confirm each form against an approved drawing; image labels do not identify a specific JCM reference.
REFERENCE SPECIFICATIONS
Choose a reference. Confirm the drawing.
All dimensions below are in millimetres. These are enquiry references, not dimensioned drawings, confirmed stock or national standard model numbers.
Return hooks & L-pins
| JCM reference | Diameter (mm) | Reference dimensions (mm) |
|---|---|---|
| JCM-H-01 | 3.5 / 4.0 | 25 × 50 × 150 |
| JCM-H-02 | 3.5 / 4.0 | 30 × 50 × 150 |
| JCM-H-03 | 3.5 / 4.0 | 25 × 70 × 150 |
| JCM-H-04 | 3.5 / 4.0 | 30 × 70 × 150 |
| JCM-L-01 | 3.5 / 4.0 | 25 × 200 |
| JCM-L-02 | 3.5 / 4.0 | 30 × 200 |
Angled pins
| JCM reference | Diameter (mm) | Reference dimensions (mm) |
|---|---|---|
| JCM-A-01 | 4.0 / 5.0* | 25 × 60 × 25 |
| JCM-A-02 | 4.0 / 5.0* | 30 × 60 × 30 |
| JCM-A-03 | 4.0 / 5.0* | 30 × 70 × 30 |
| JCM-A-04 | 4.0 / 5.0* | 30 × 90 × 30 |
Offset pins
| JCM reference | Diameter (mm) | Reference dimensions (mm) |
|---|---|---|
| JCM-O-01 | 3.5 / 4.0 | 25 × 65 × 20 |
| JCM-O-02 | 3.5 / 4.0 | 30 × 65 × 20 |
| JCM-O-03 | 3.5 / 4.0 | 25 × 85 × 20 |
| JCM-O-04 | 3.5 / 4.0 | 30 × 85 × 20 |
U-shaped pins
| JCM reference | Diameter (mm) | Reference dimensions (mm) |
|---|---|---|
| JCM-U-01 | 4.0 / 5.0* | 25 × 60 × 25 |
| JCM-U-02 | 4.0 / 5.0* | 30 × 60 × 30 |
| JCM-U-03 | 4.0 / 5.0* | 25 × 70 × 25 |
| JCM-U-04 | 4.0 / 5.0* | 30 × 70 × 30 |
| JCM-U-05 | 4.0 / 5.0* | 30 × 90 × 30 |
* 5.0 mm is available on request, subject to production review.
Long and short pins · 4.0 mm diameter
| Family | Reference length L (mm) |
|---|---|
| JCM-BL · Long pins | 380, 390, 400, 410, 420, 430, 440, 450, 460, 470, 480, 490, 500, 510 |
| JCM-BS · Short pins | 110, 120, 130, 170 |
Enquiry examples: JCM-BL-460 and JCM-BS-110. L is a reference length label; its measurement basis and the end shapes require an approved drawing. It does not automatically mean overall or developed length.
Special end forms · JCM-C
Reference diameter: 4.0 mm. Reference L: 460 mm. End forms are conceptual and are reviewed to your drawing; they are not fixed SKUs.
Map every dimension to its segment. Agree inside, outside or centreline measurements, bend radii, bend angles and tolerances. The project engineer must confirm the applicable SI 2378 part and edition, fixing design and tests. Diameter alone does not establish compliance; this catalogue is not a conformity certificate or installation drawing.
Source: JCM catalogue, Rev. 03 · 19 September 2026.
PACKING & SHIPPING
Plan the order and packing

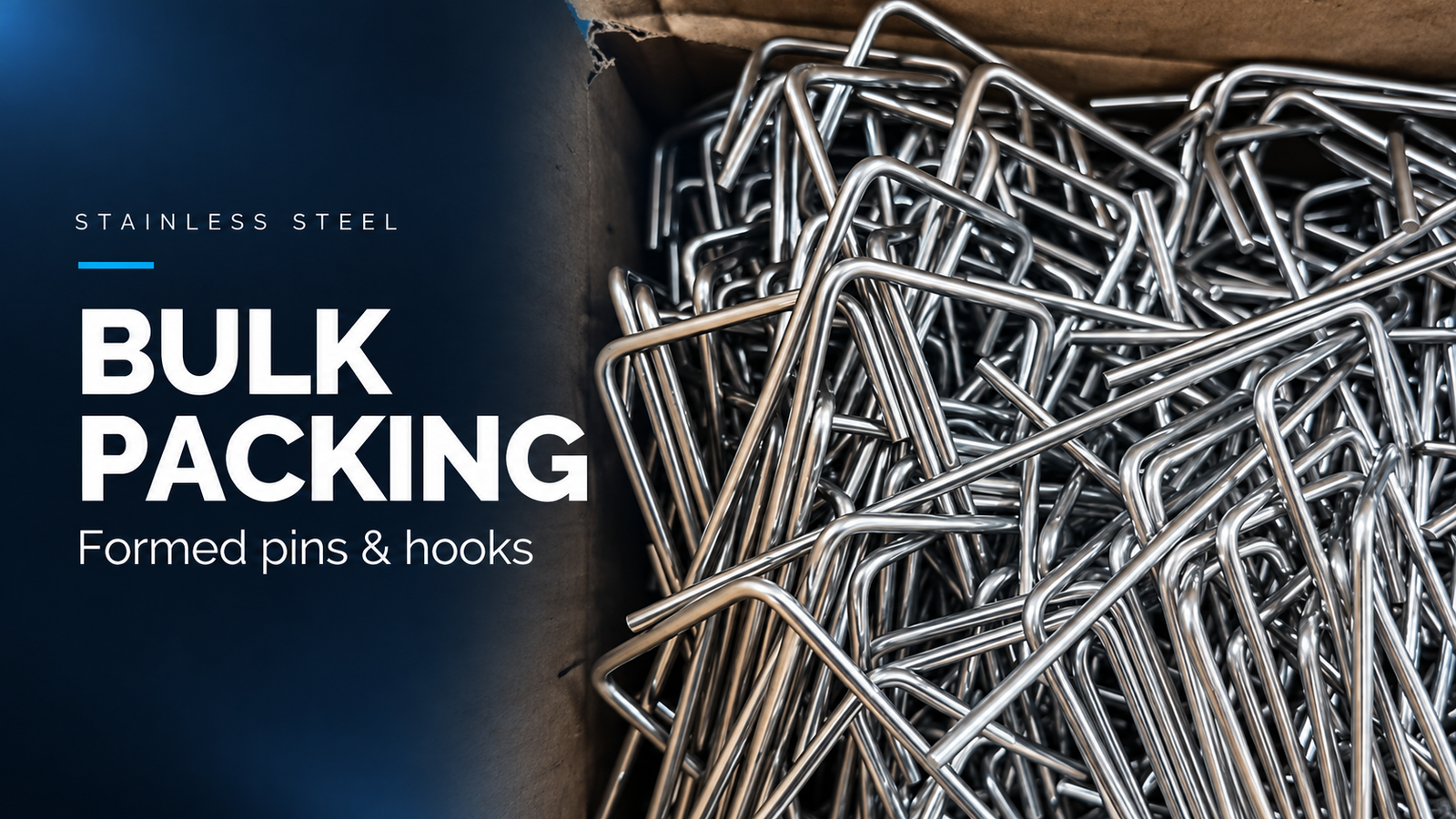

Packing and loading illustrations. Carton quantities, pallet loads and shipment arrangements are agreed per order.
Settlement is based on actual product net weight, excluding packaging. Unit weights, pieces per carton, pallet loads, price, MOQ and lead time are confirmed separately.
DRAWING-BASED ENQUIRIES
Send the details for your project
Include the JCM reference, drawing and revision, wire diameter, segment dimensions and quantity per size. Specify material certificate and traceability requirements, end finish, inspection, packing and delivery terms.
