Reinforcing mesh
A complete range of square, rectangular, trench and utility mesh supplied for Australian-market construction requirements.

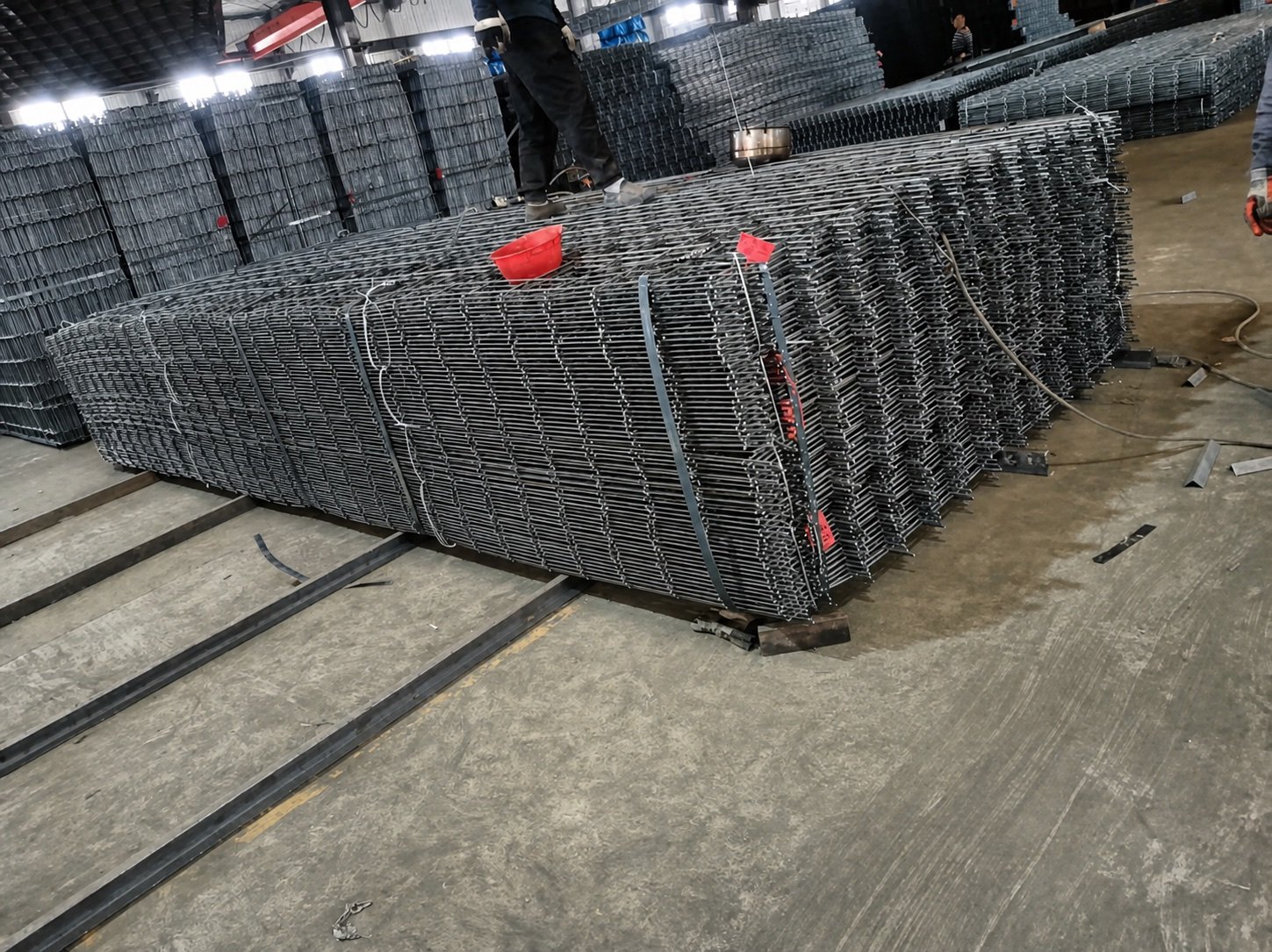

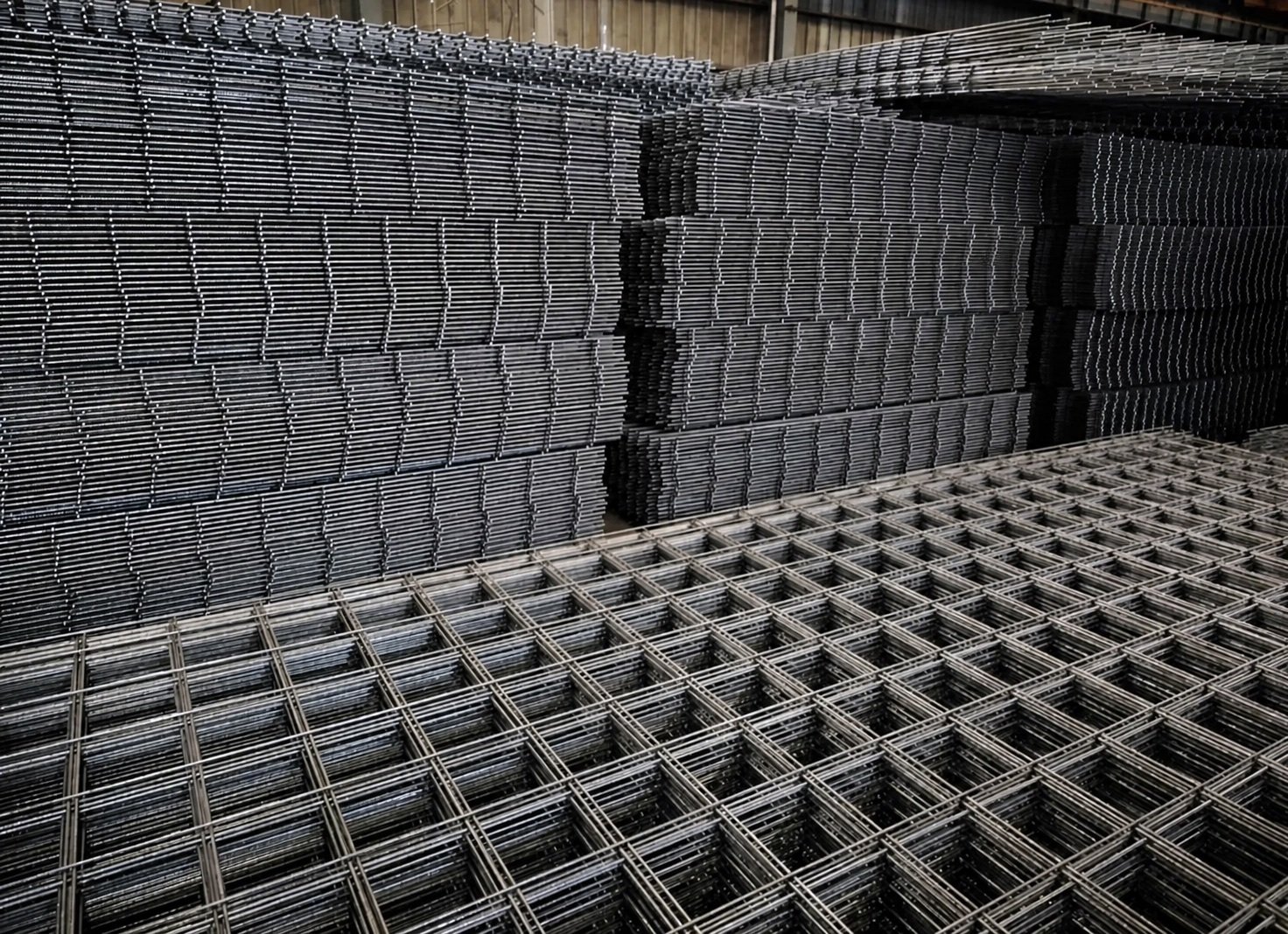

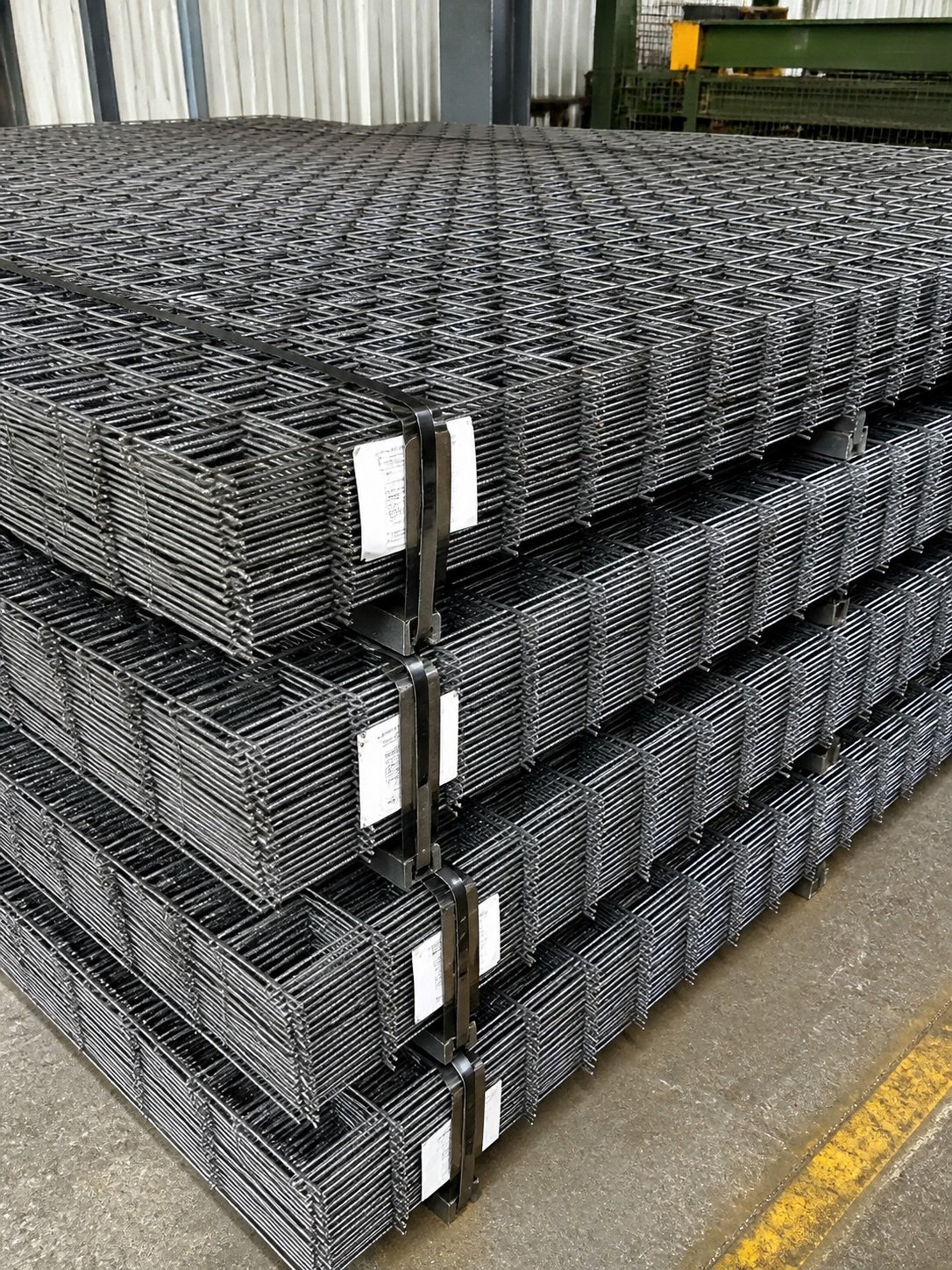

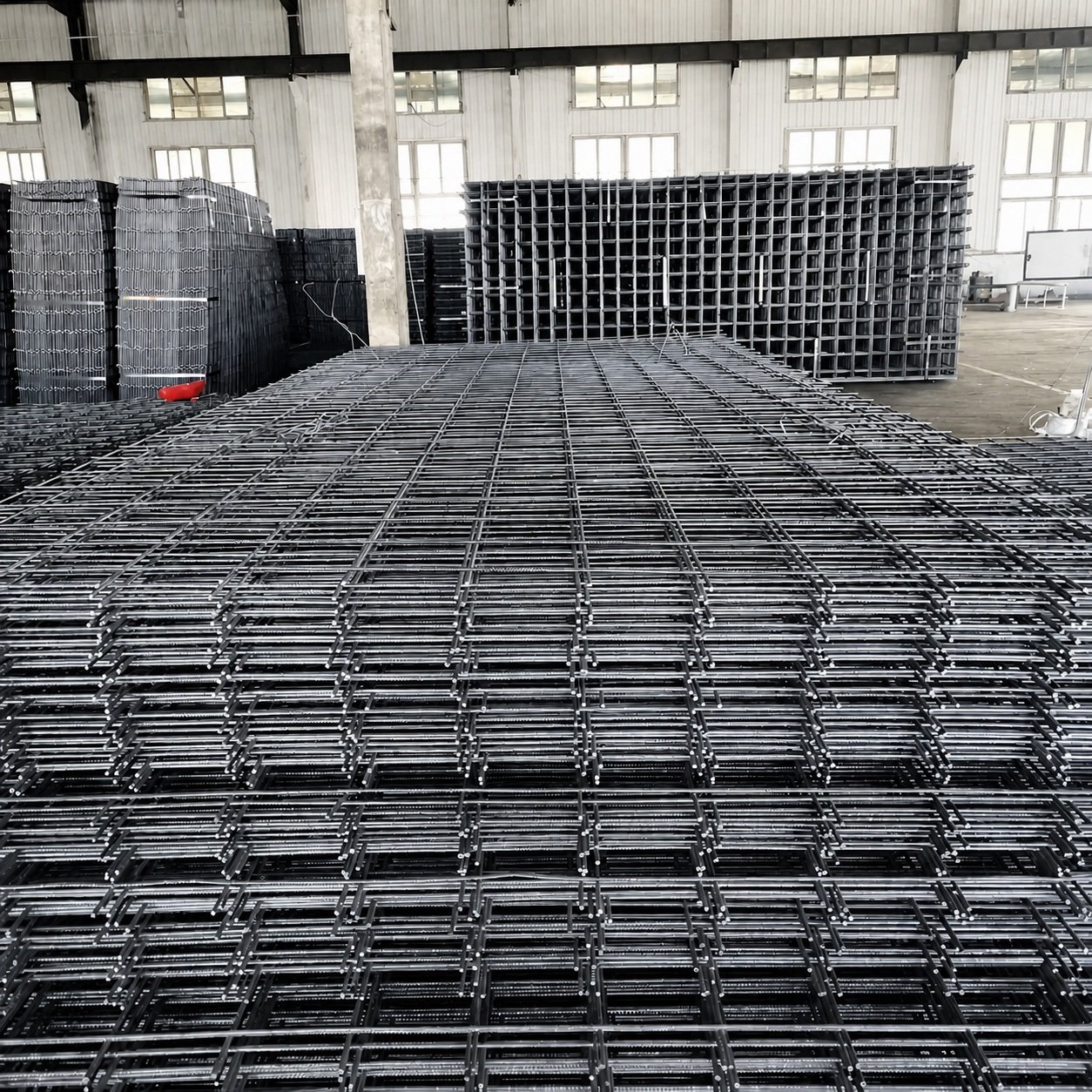

Product gallery

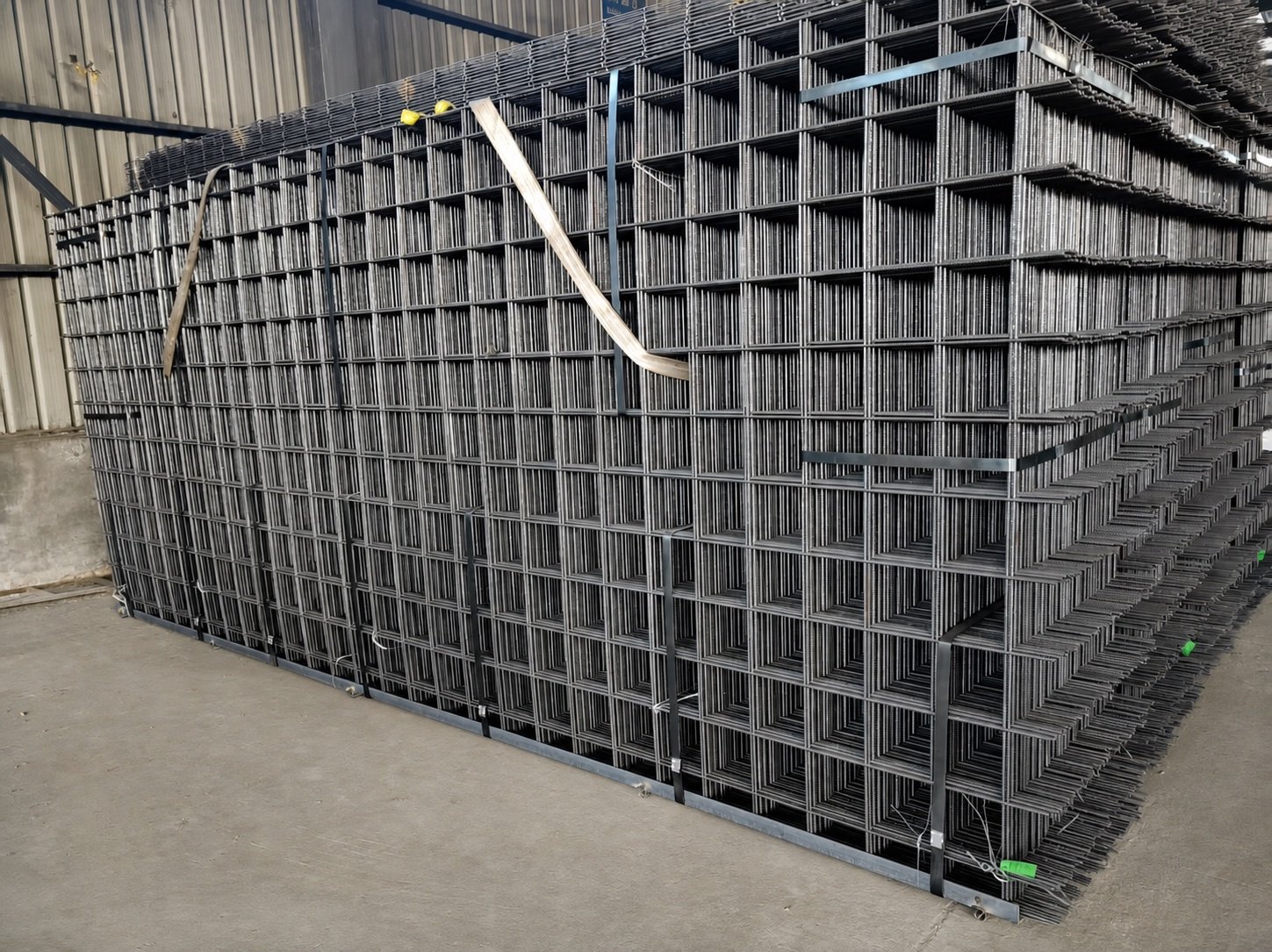

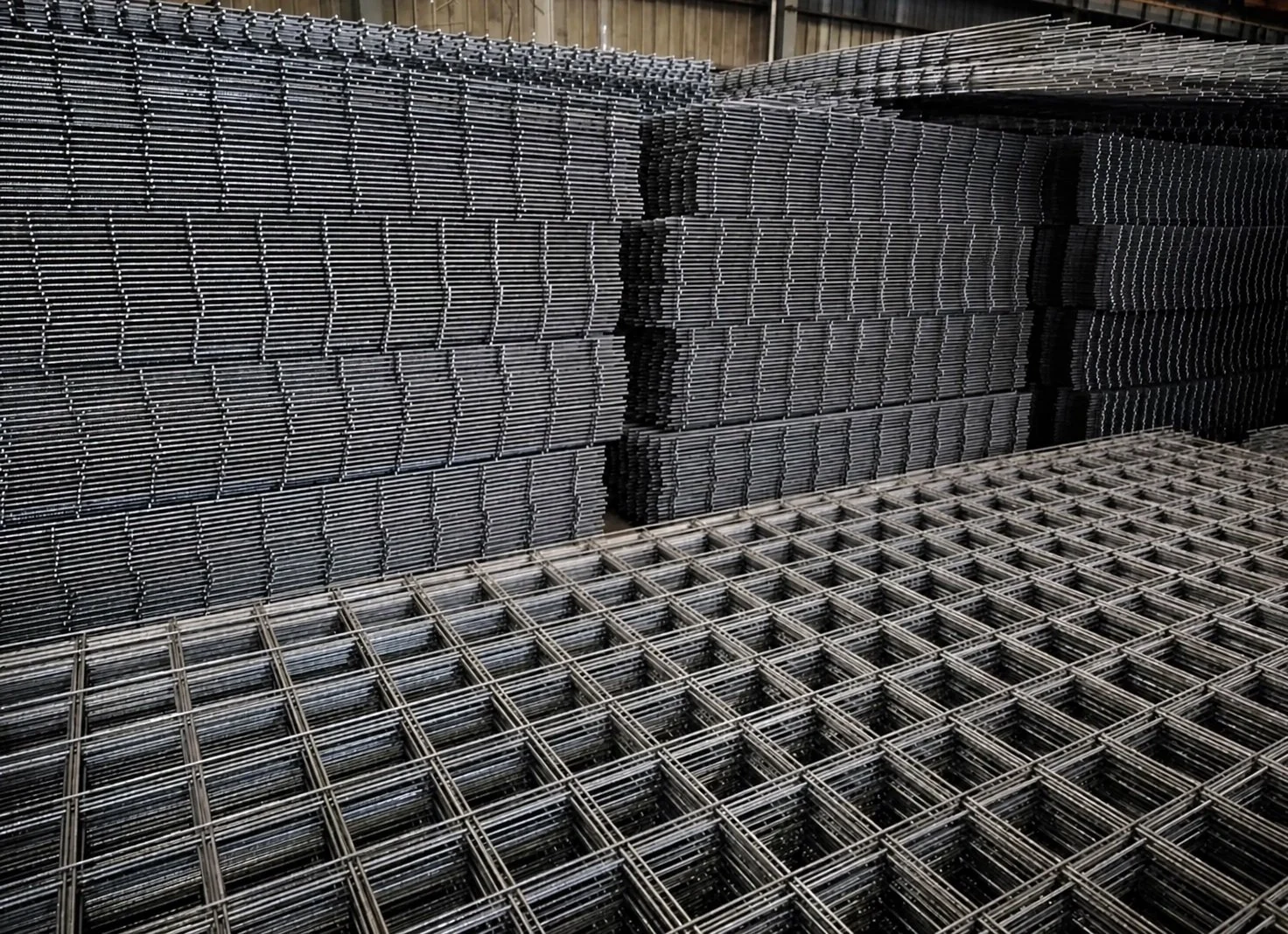

A visual reference for the mesh range, factory stock and packing formats.

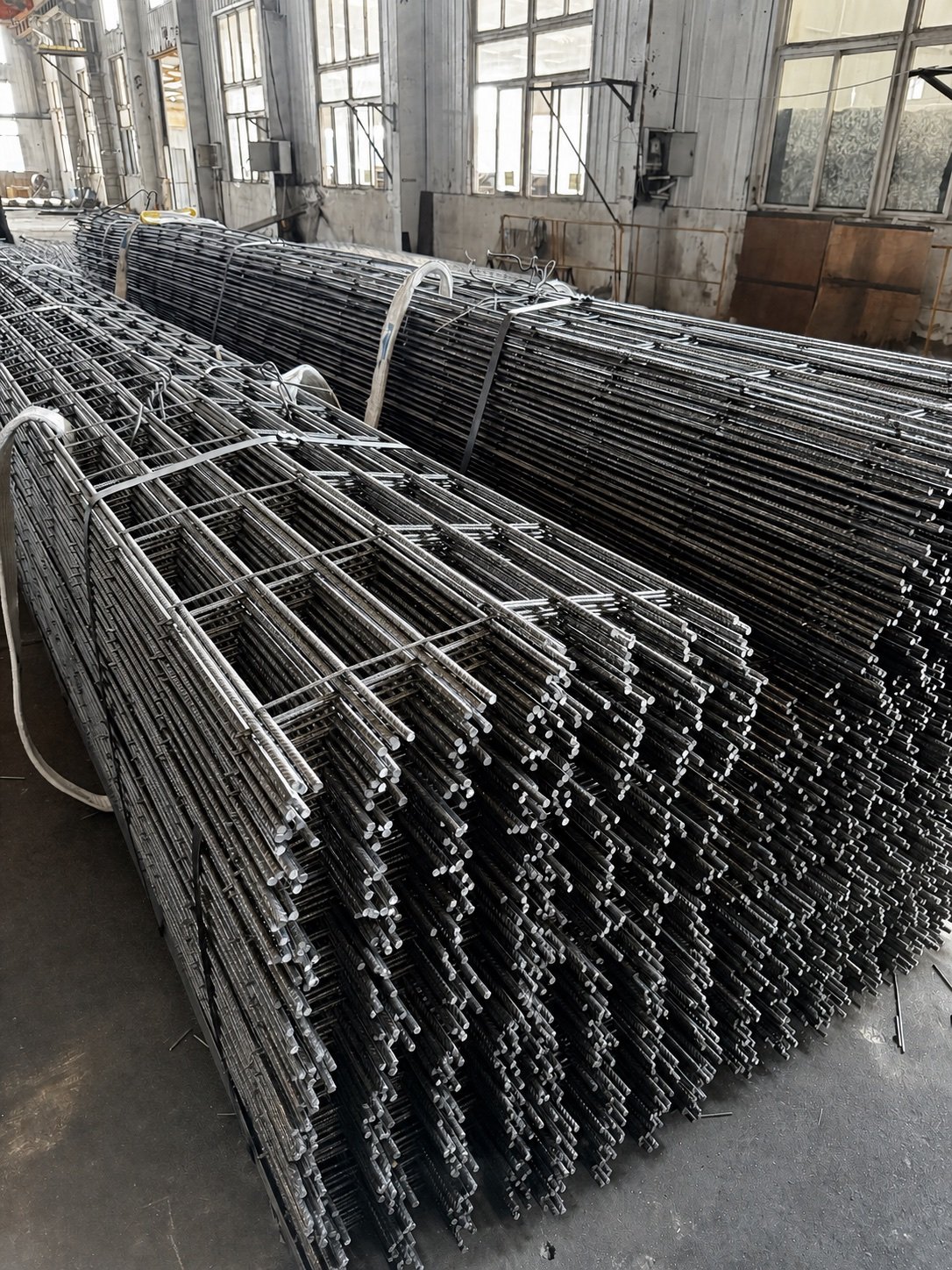

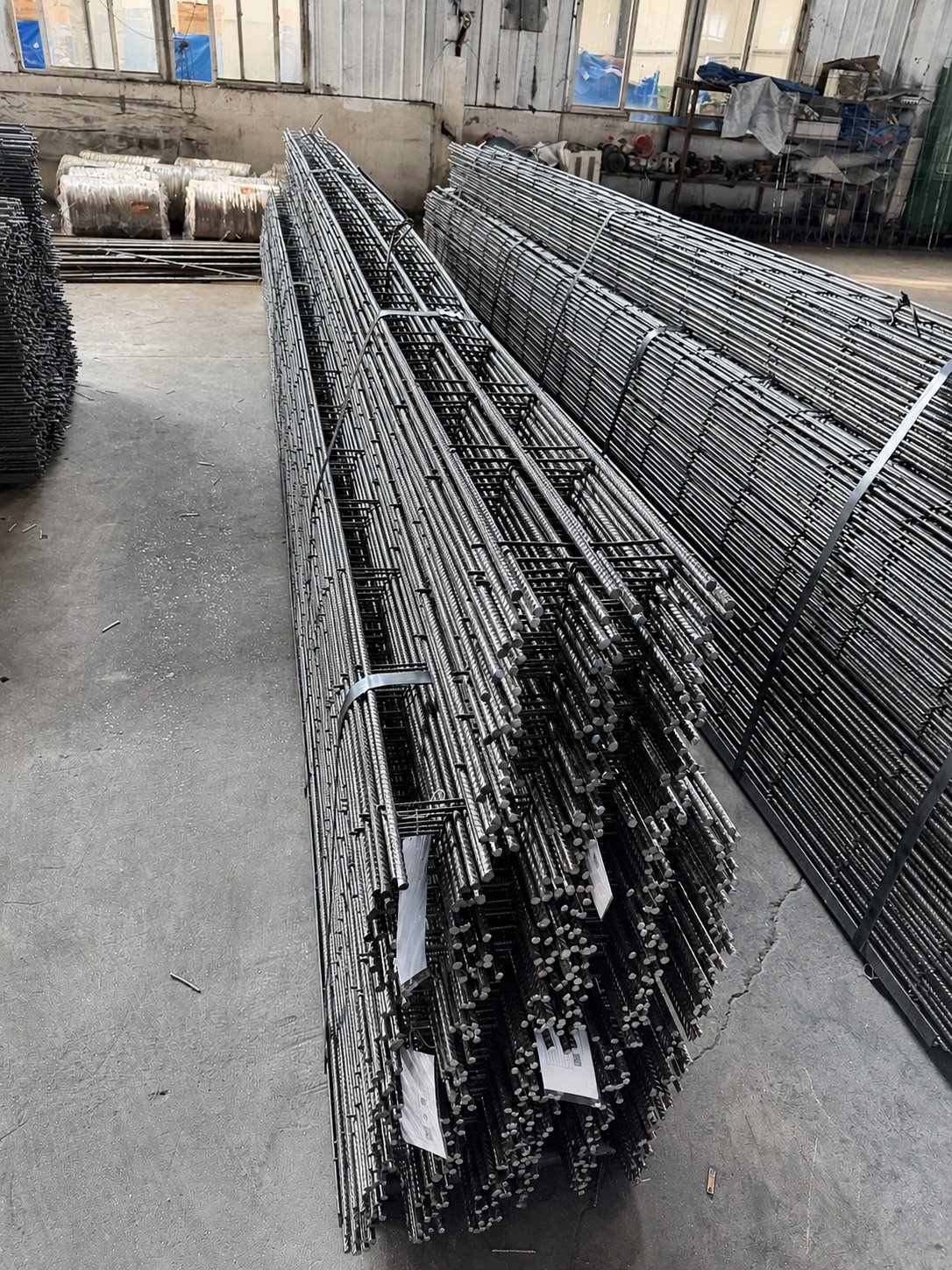

Trench mesh

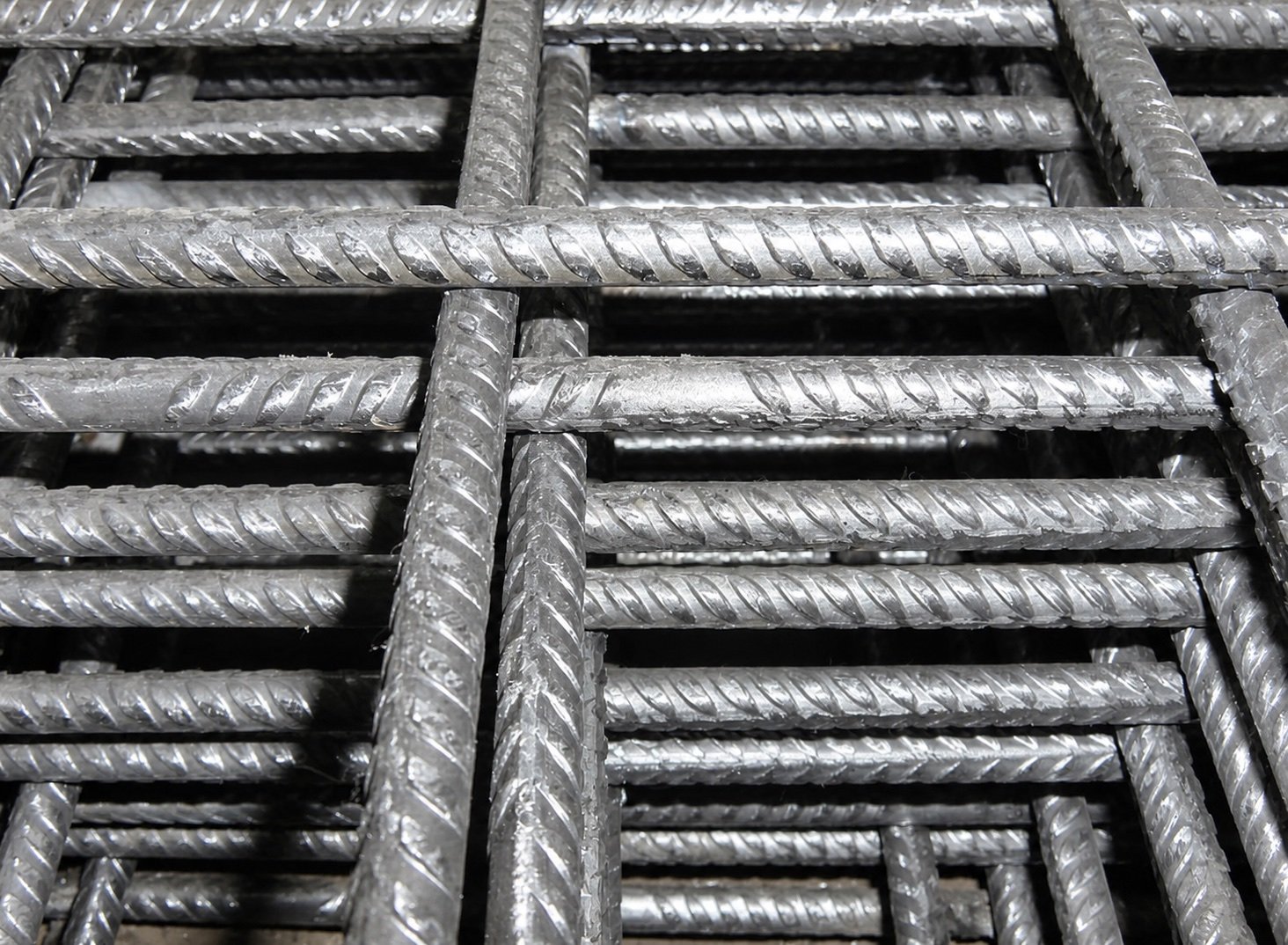

Factory views of bundled trench mesh and reinforcing steel detail.
Range guide
Select by reinforcement direction, sheet format and application. Detailed weights and loading data follow below.
Common supply applications
Buyer types
Technical specifications
The information below provides a clear comparison basis for professional enquiries. Final packing and container planning are confirmed against the order.
| Model | Sheet size | Approx. weight | Indicative 40HQ |
|---|---|---|---|
| SL62 | 6.0 × 2.4 m | 33 kg | 700 sheets |
| SL72 | 6.0 × 2.4 m | 41 kg | 620 sheets |
| SL82 | 6.0 × 2.4 m | 52 kg | 500 sheets |
| SL92 | 6.0 × 2.4 m | 66 kg | 400 sheets |
| SL102 | 6.0 × 2.4 m | 80 kg | 320 sheets |
| SL81 | 6.0 × 2.4 m | 105 kg | 240 sheets |
| Model | Sheet size | Approx. weight | Indicative 40HQ |
|---|---|---|---|
| RL818 | 6.0 × 2.4 m | 79 kg | 350 sheets |
| RL918 | 6.0 × 2.4 m | 93 kg | 300 sheets |
| RL1018 | 6.0 × 2.4 m | 109 kg | 250 sheets |
| RL1118 | 6.0 × 2.4 m | 131 kg | 210 sheets |
| RL1218 | 6.0 × 2.4 m | 157 kg | 176 sheets |
| Model | Width × length | Approx. weight | Indicative 40HQ |
|---|---|---|---|
| L11TM3 | 200 × 6000 mm | 13.3 kg | 2,050 pieces |
| L11TM4 | 300 × 6000 mm | 17.7 kg | 1,550 pieces |
| L12TM3 | 200 × 6000 mm | 15.8 kg | 1,750 pieces |
| L12TM4 | 300 × 6000 mm | 21.2 kg | 1,300 pieces |
| Model | Sheet size | Approx. weight | Indicative 40HQ |
|---|---|---|---|
| SL72UTE | 4.0 × 2.0 m | 23.61 kg | 1,020 sheets |

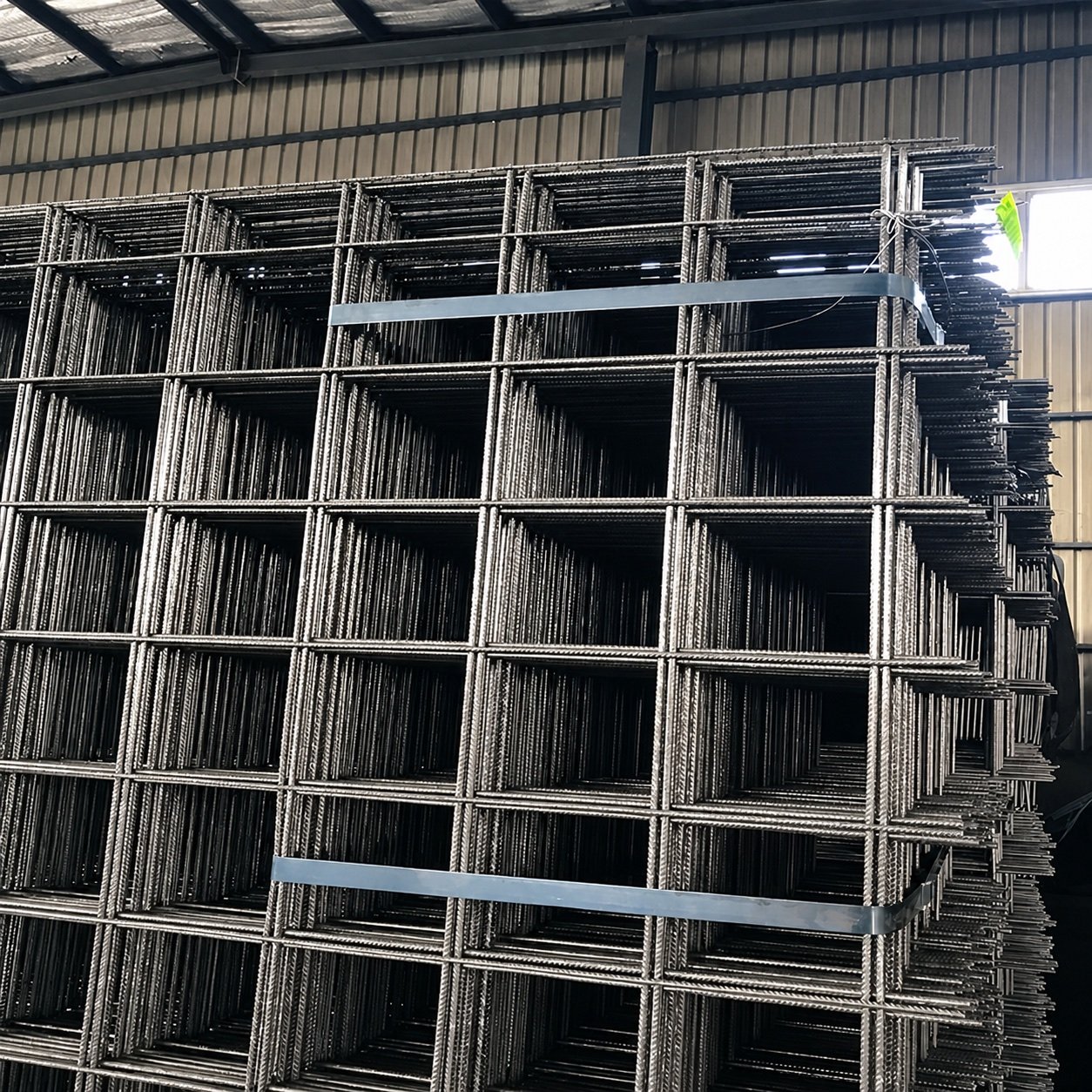

Packing & export
Product, bundle and container details are coordinated against the confirmed order rather than treated as generic assumptions.
Exact product and specification basis checked before production.
Bundle and handling basis aligned with the order and destination.
Container quantity and export documentation coordinated for shipment.
Product questions
The range covers six square mesh, five rectangular mesh, four trench mesh and one utility mesh model.
They are indicative planning figures. Final quantities depend on the confirmed packing, order mix and container plan.
Include the model, quantity, destination port and required timing. Add any project or documentation requirements that affect the order.
Product information
Use the model tables above to identify the square, rectangular, trench or utility mesh required by your project. Send the full model designation and schedule so the quotation can be checked against the correct sheet or length format.
The catalogue supports product comparison and quotation; it does not replace the project reinforcement design. Mesh selection, placement and construction details must follow the approved project documents.
For New Zealand supply enquiries, send the required specification and model schedule for review. Australian catalogue references are not a declaration of equivalence or project approval in New Zealand.
Tell us which model and documents your buyer requires before placing an order. Certification scope and order documentation should be confirmed for the exact supply, not inferred from a product photograph.
Request a reinforcing mesh quotation, review technical resources or view production and quality information.
Model-specific supply
Send the model, quantity, destination port and timing for a focused commercial response.
